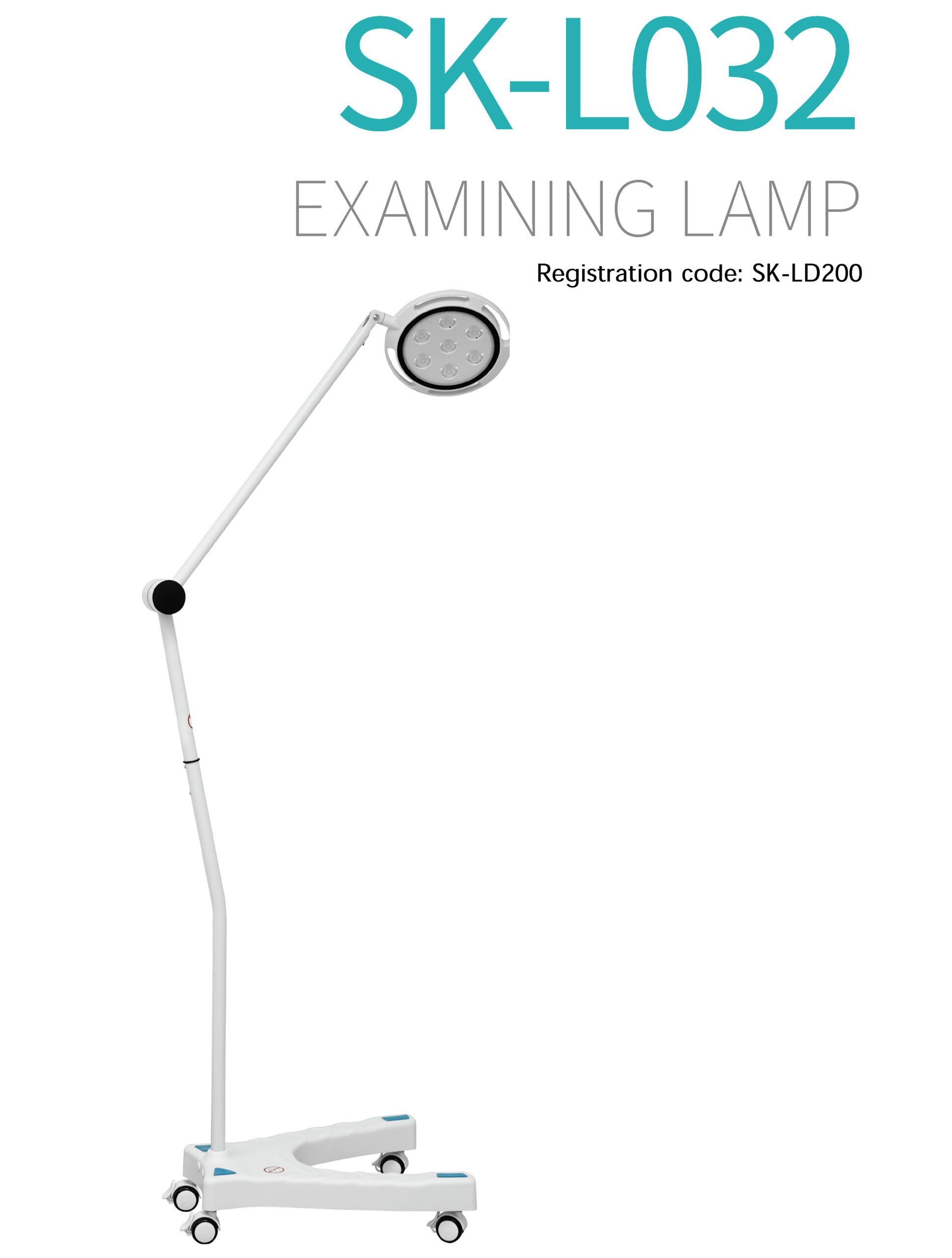

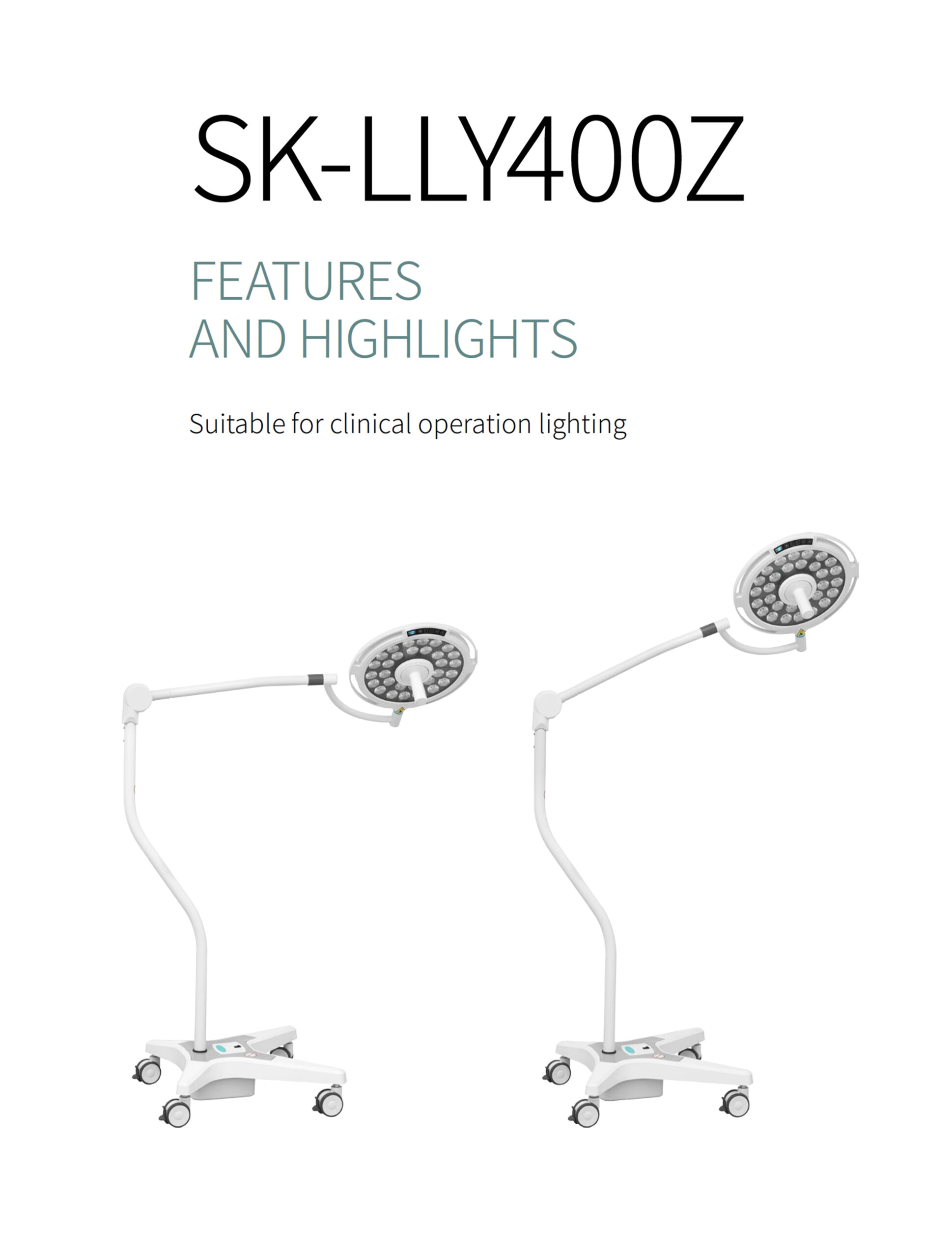

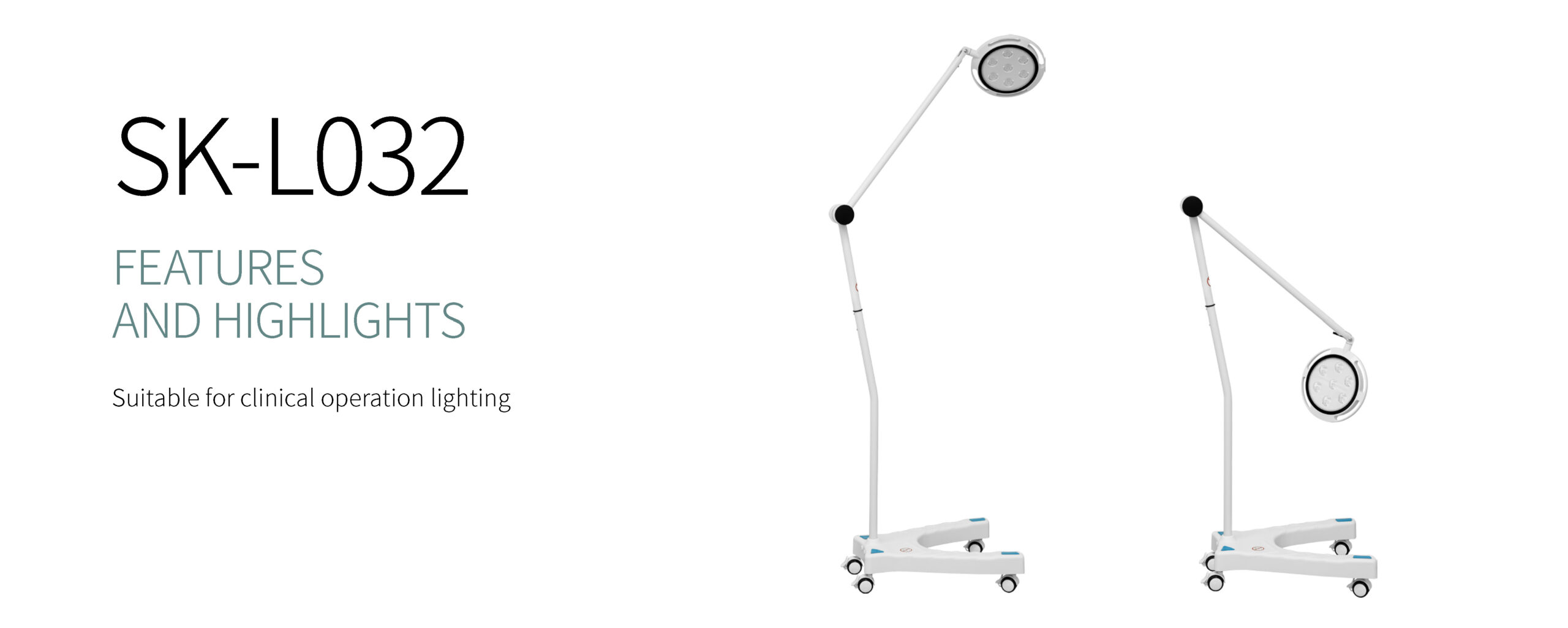

โคมไฟส่องตรวจผ่าตัดเล็ก Examination Lamp แบบ LED ชนิดขาตั้ง

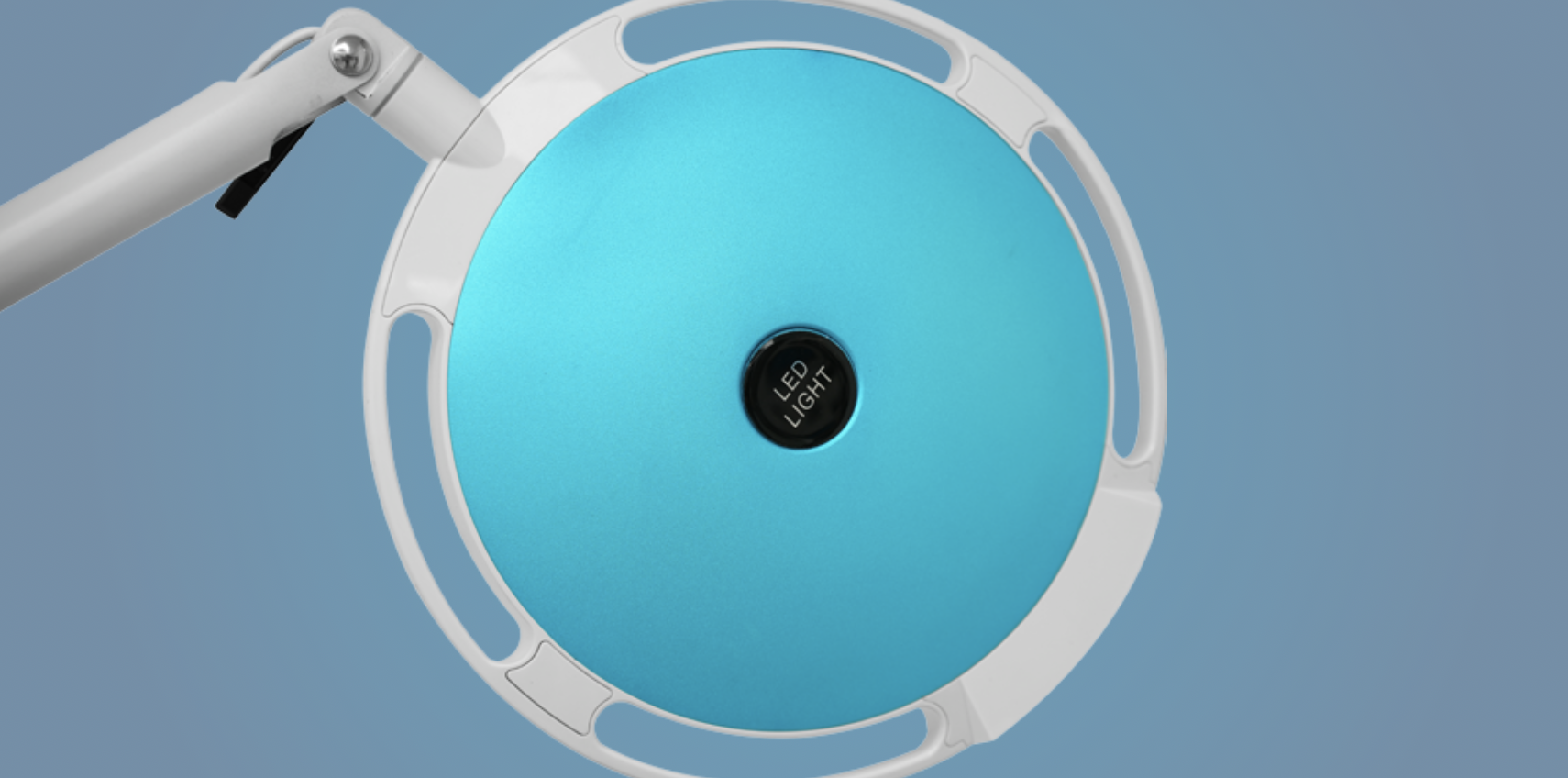

Material technology

The lampshade shell is made of aluminum + integrated ABS structure design, which facilitates heat dissipation. The surface adopts the high-voltage electrostatic spraying process, and the imported environmentally friendly antibacterial plastic powder that used to ensures that the product meets the requirements of surgical hygiene.

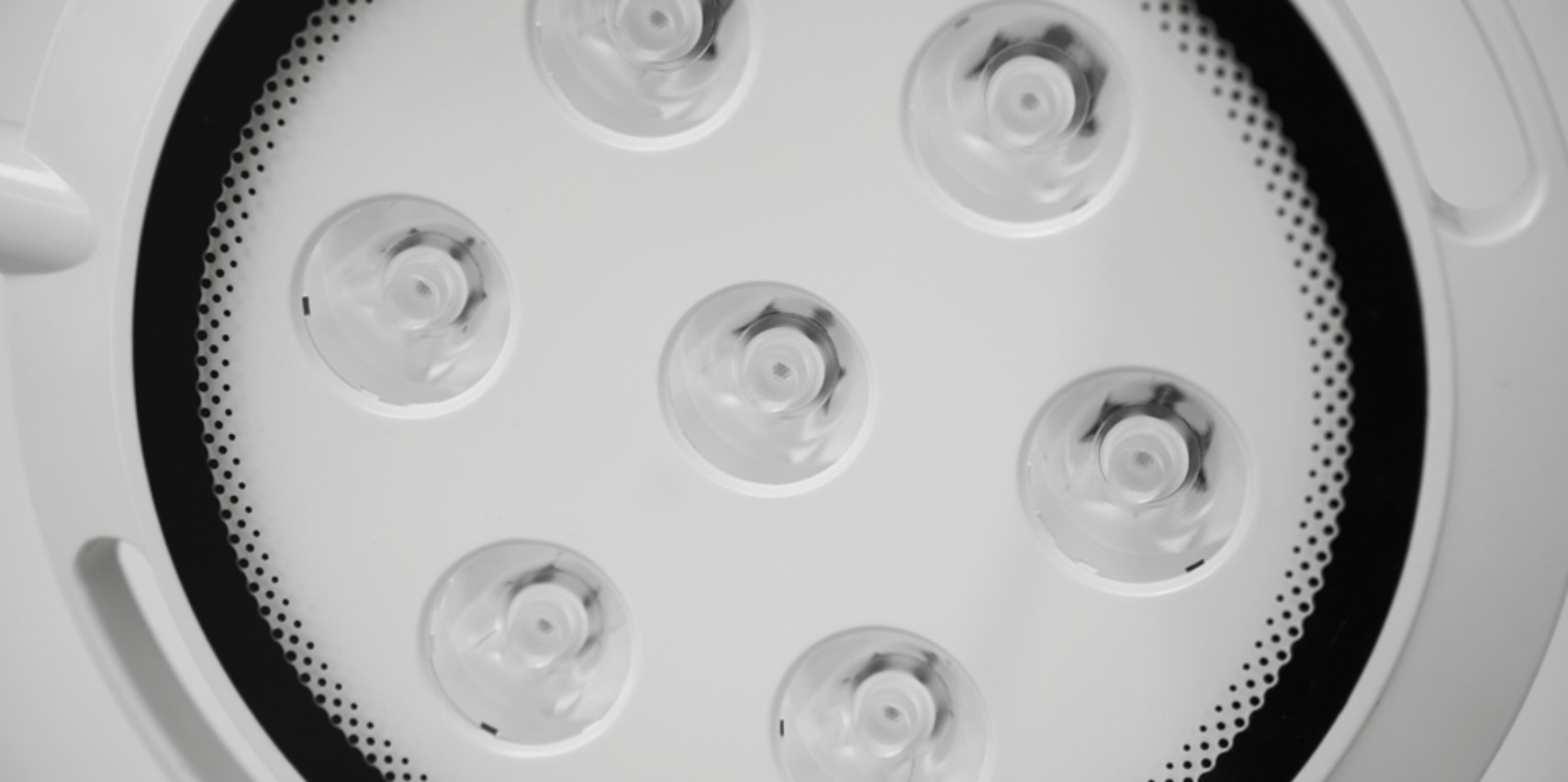

Light source components

The internal light source components are composed of ABS+aluminum substrate structure, offering excellent heat dissipation, lightweight to reduce failure rate.

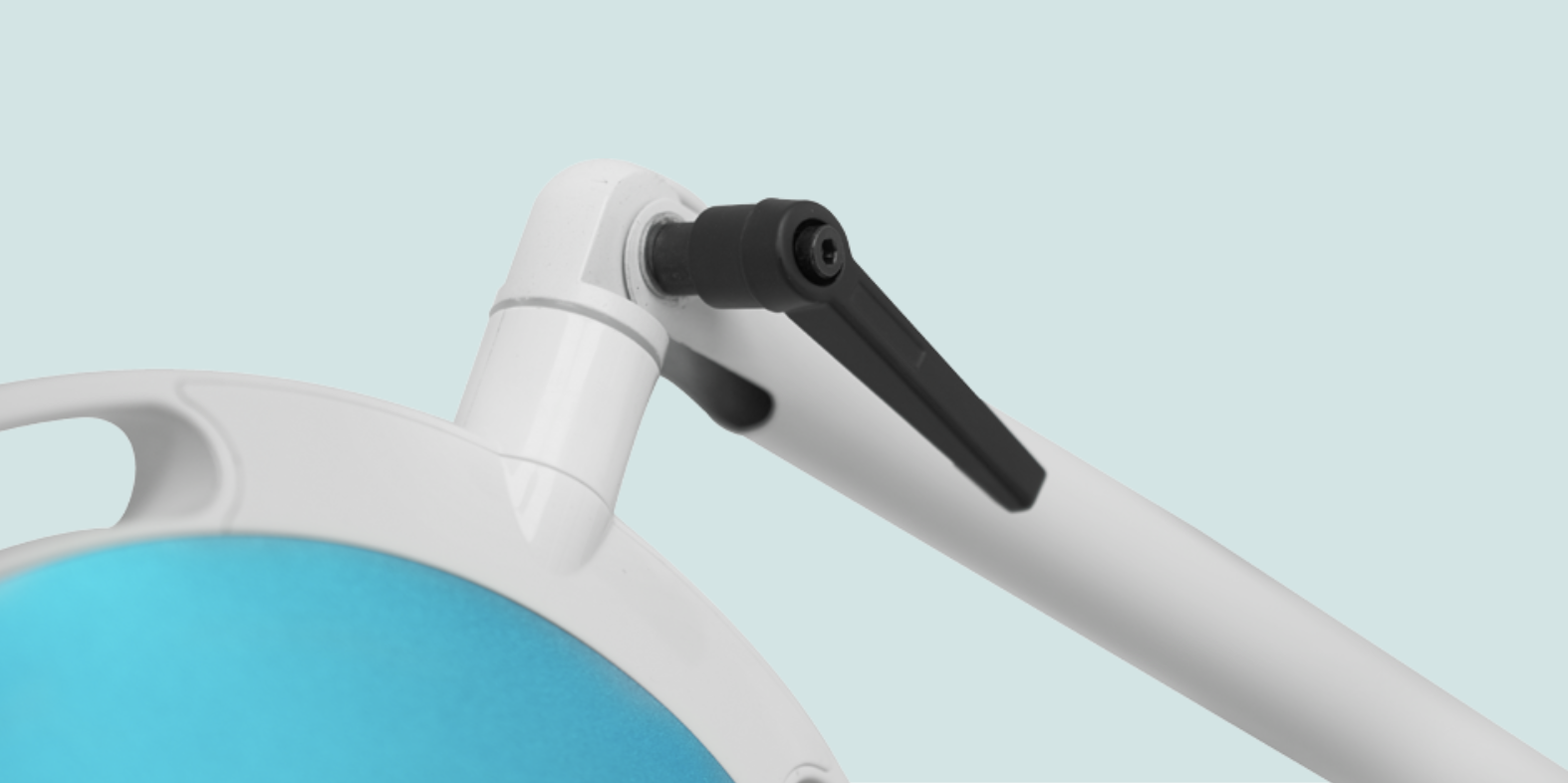

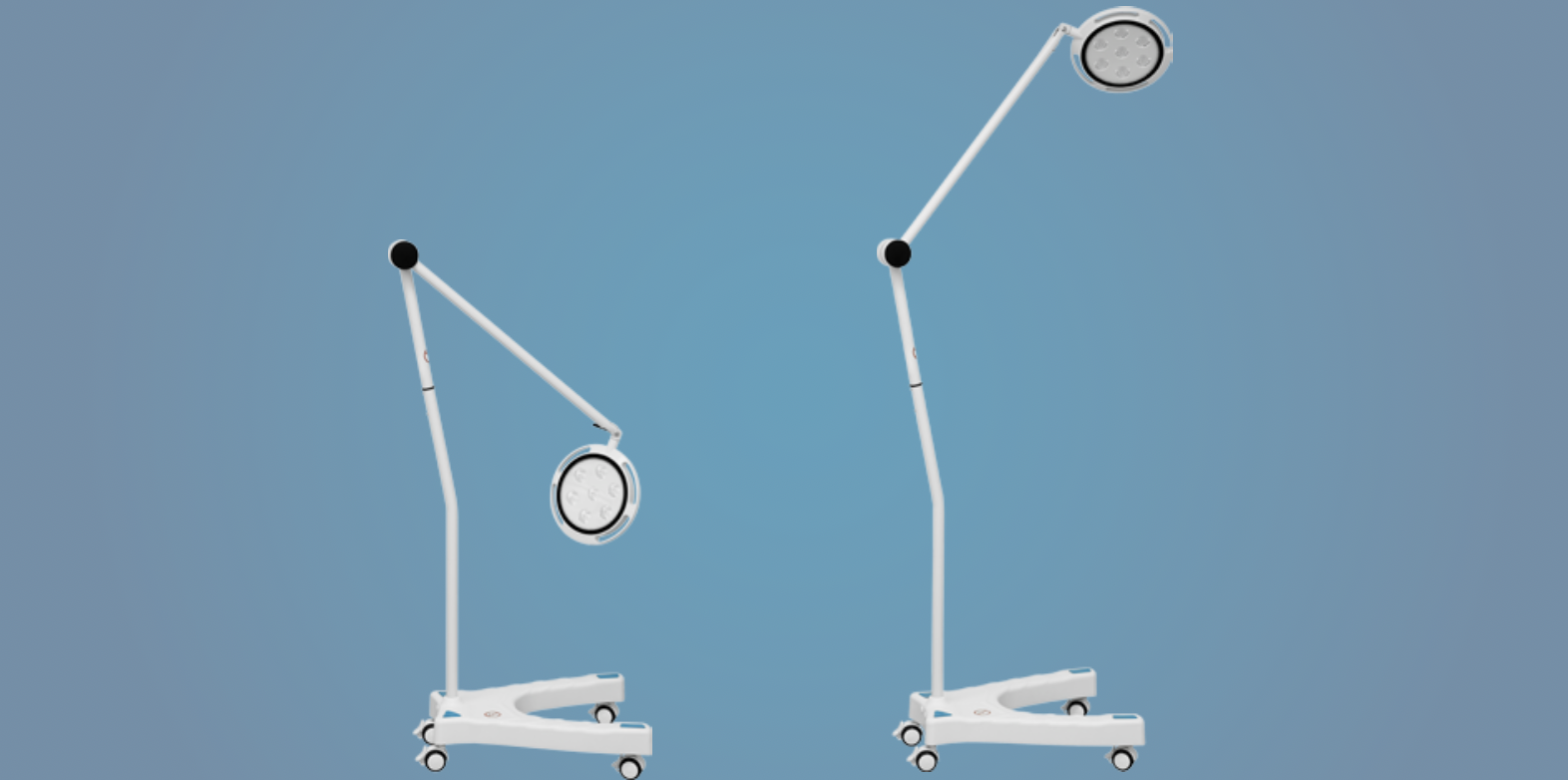

Lamp head adjustment

Up and down 90°, horizontal flip 300°.

Height adjustment

Height is adjustable, can match the height of the patient easily.

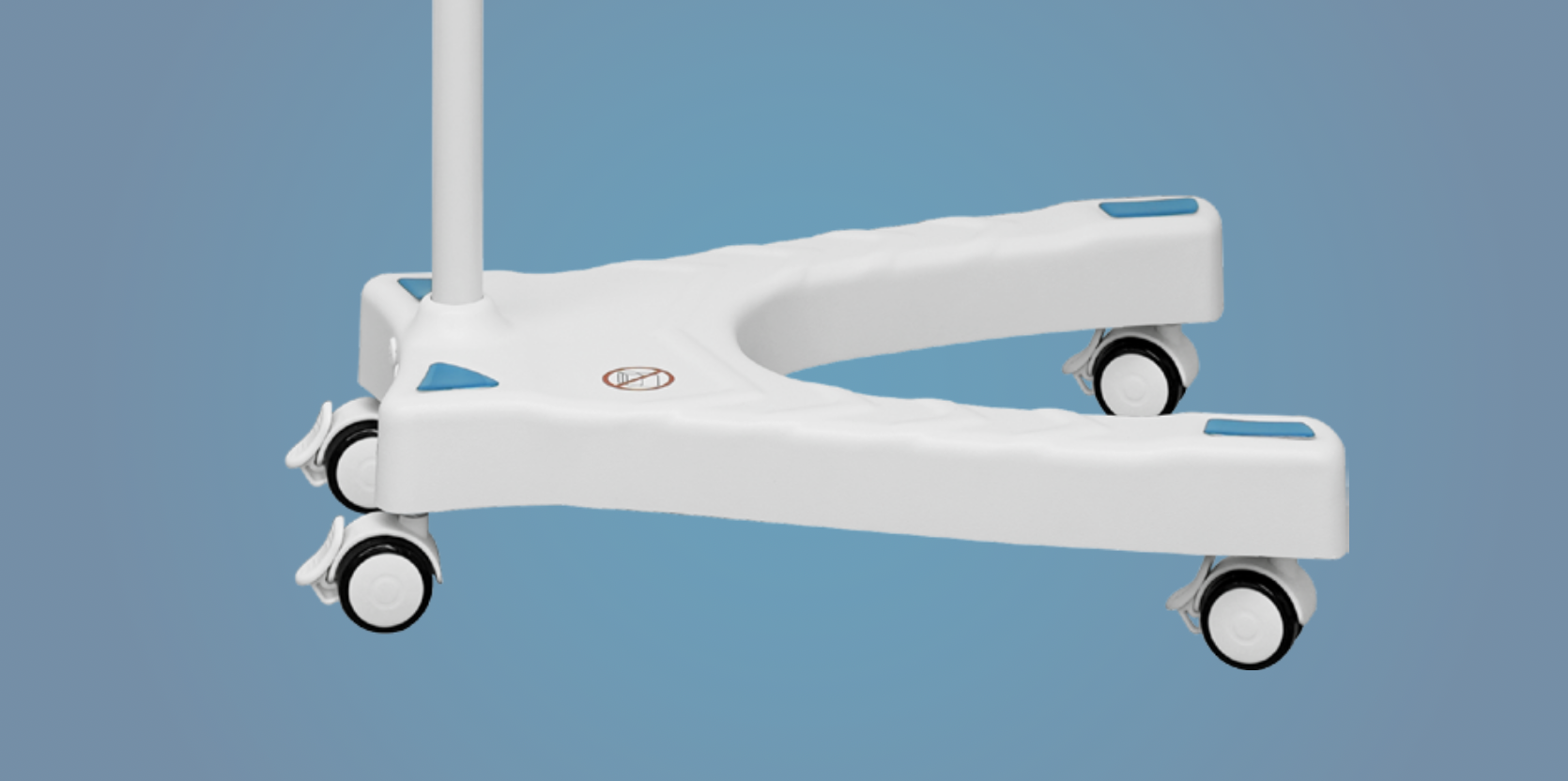

Base

U-sharp design, 4pcs 2-inch TPU universal silent wheels, easy and flexible to move.

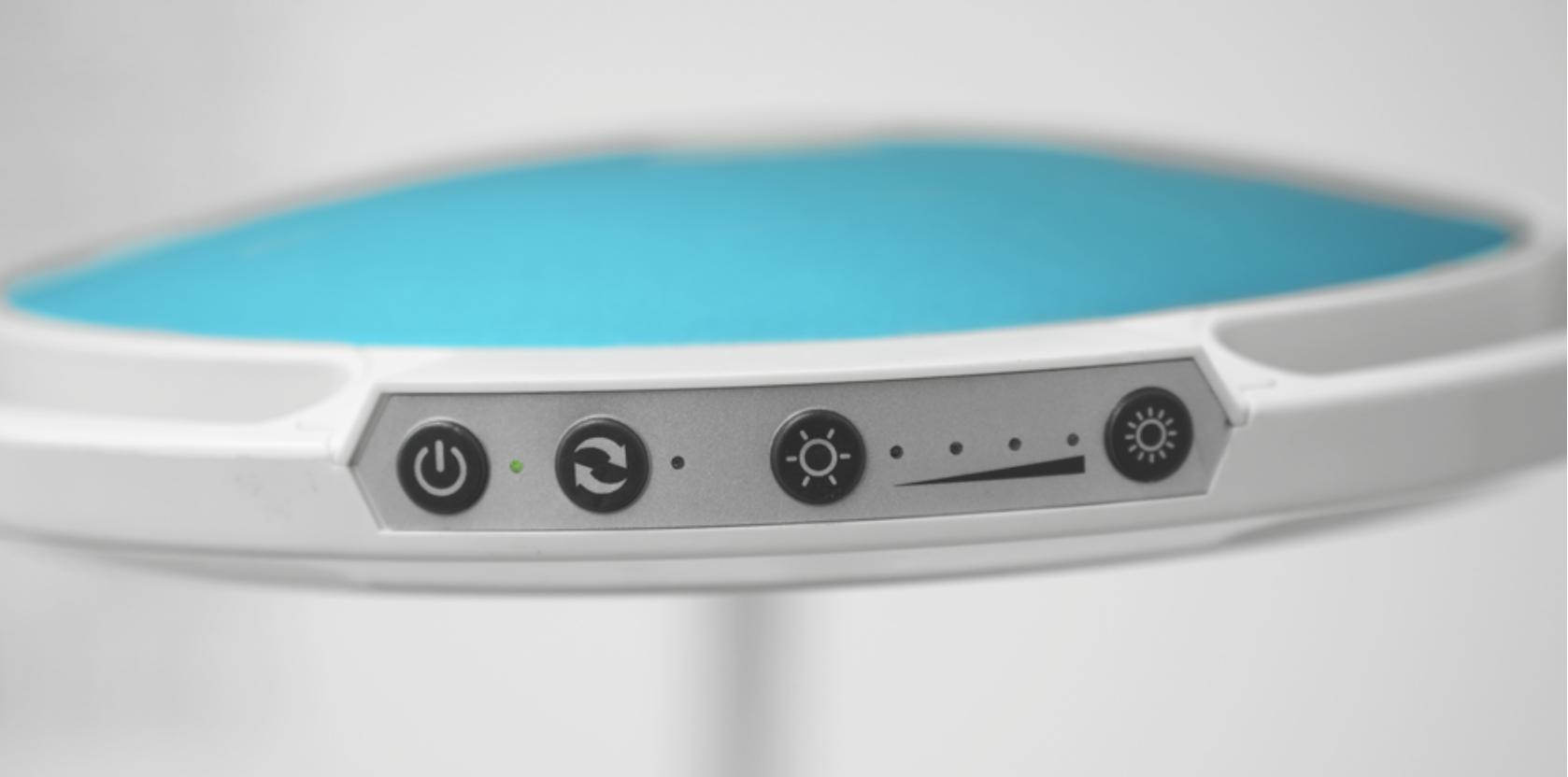

Control panel

Button operation is clear and straightforward.

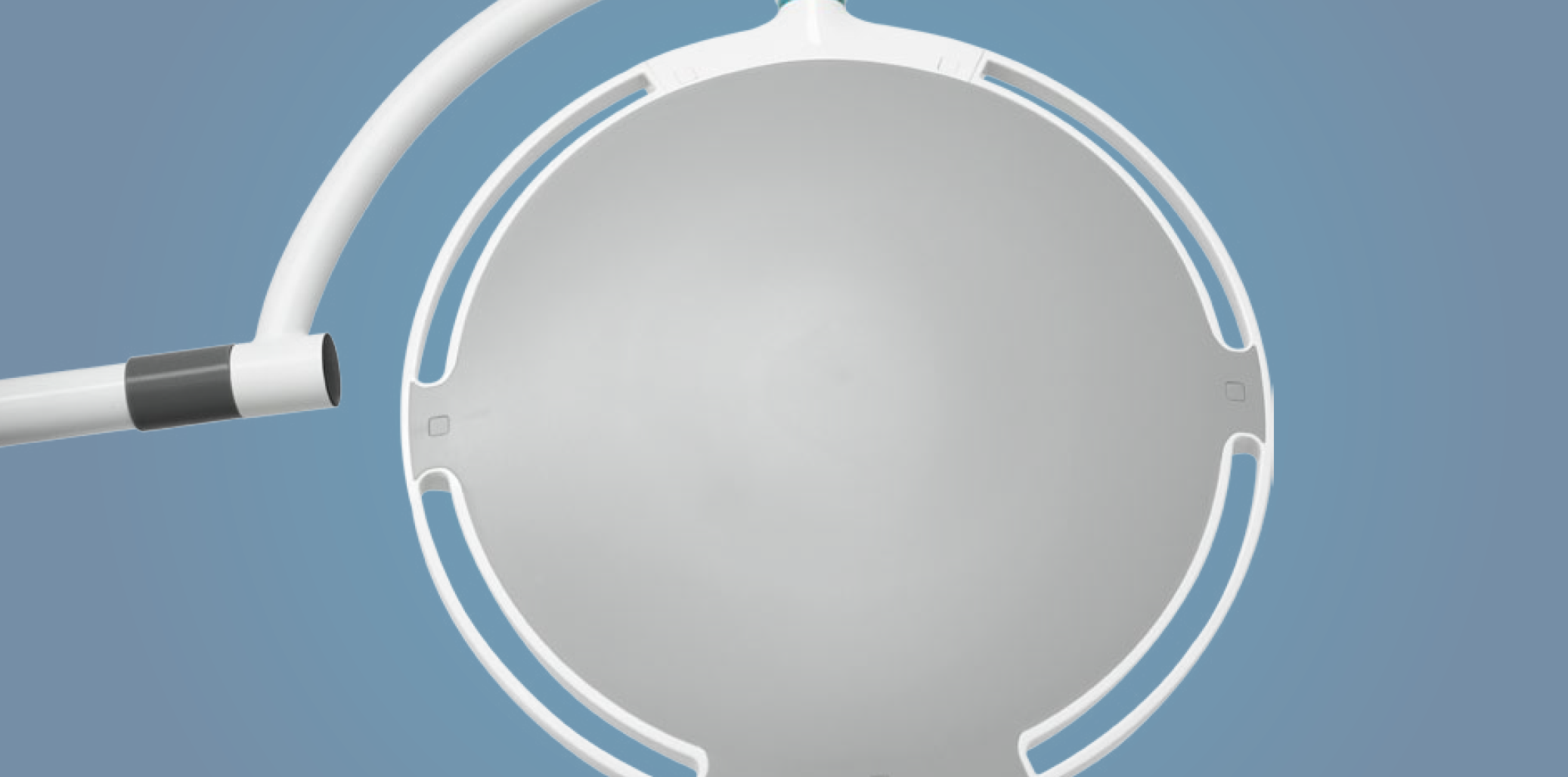

Material technology

The lampshade shell is made of ABS structure design, which facilitates heat dissipation. The surface adopts the high-voltage electrostatic spraying process, and the imported environmentally friendly antibacterial plastic powder that used to ensures that the product meets the requirements of surgical hygiene.

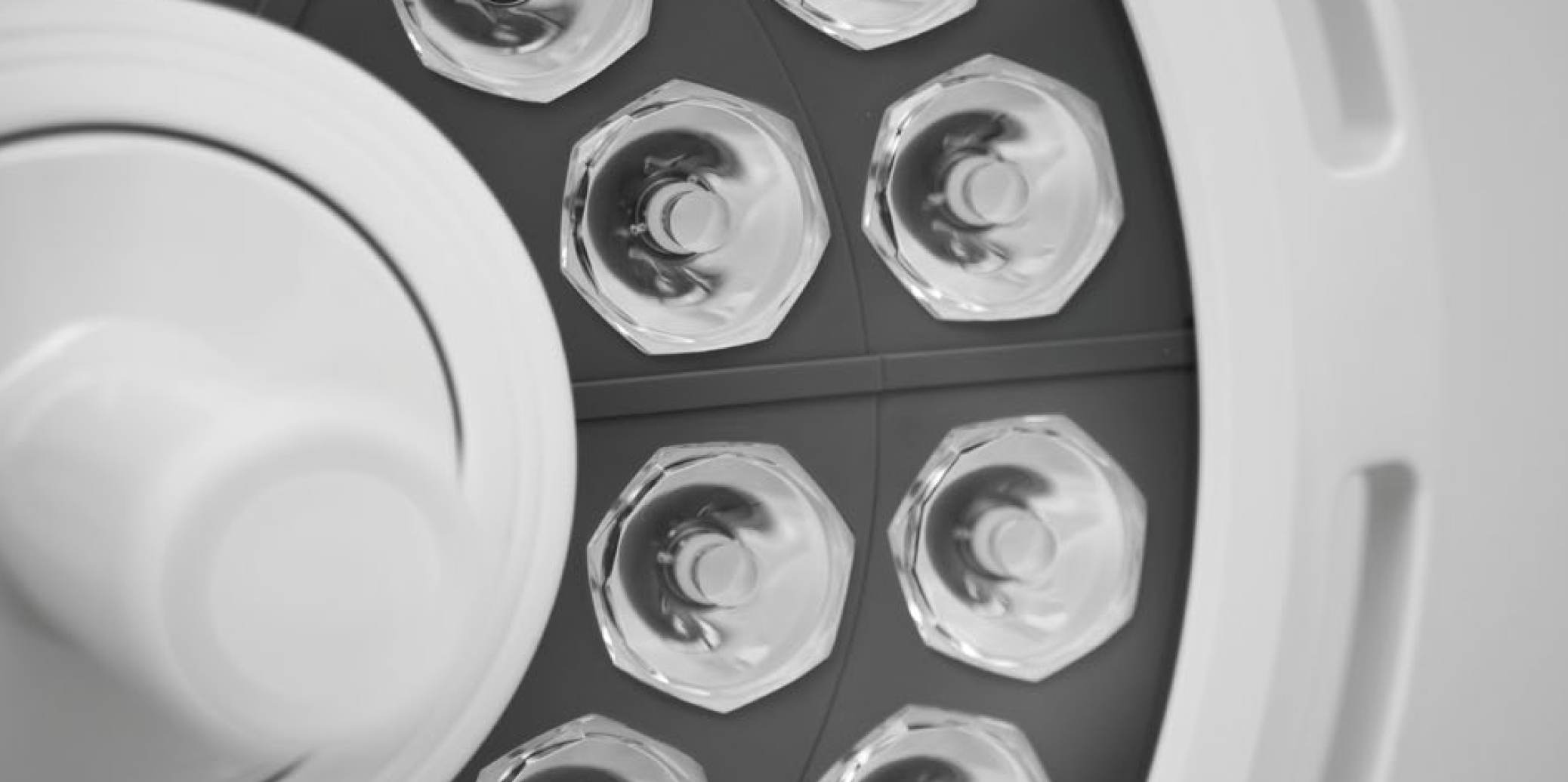

Bulb

Using the original imported Led lamp beads from Osram, Germany, the average service life is as high as 50,000 hours, which is 40 times longer life than halogen lamps. Under the same brightness, the energy consumption of Led is only 1/10 of that of ordinary incandescent lamps and 1/2 of that of halogen lamps.

Color temperature&Illumination

Using a new type of Led cold light source, the illuminance can reach 80,000 Lux, which can realize 10-level adjustment; the color temperature is in the range of 4000K-5000K.

Color rendering index

The color rendering index reaches 90, which truly reflects the color of human tissues. It is suitable for various surgical scenes and greatly reduces the visual fatigue of medical staff due to long-term operations.

Light source components

• Internal light source component: ABS plastic frame + aluminum substrate.

• Excellent heat dissipation.

• Lightweight design.

• Wired connection for reduced failure rate.

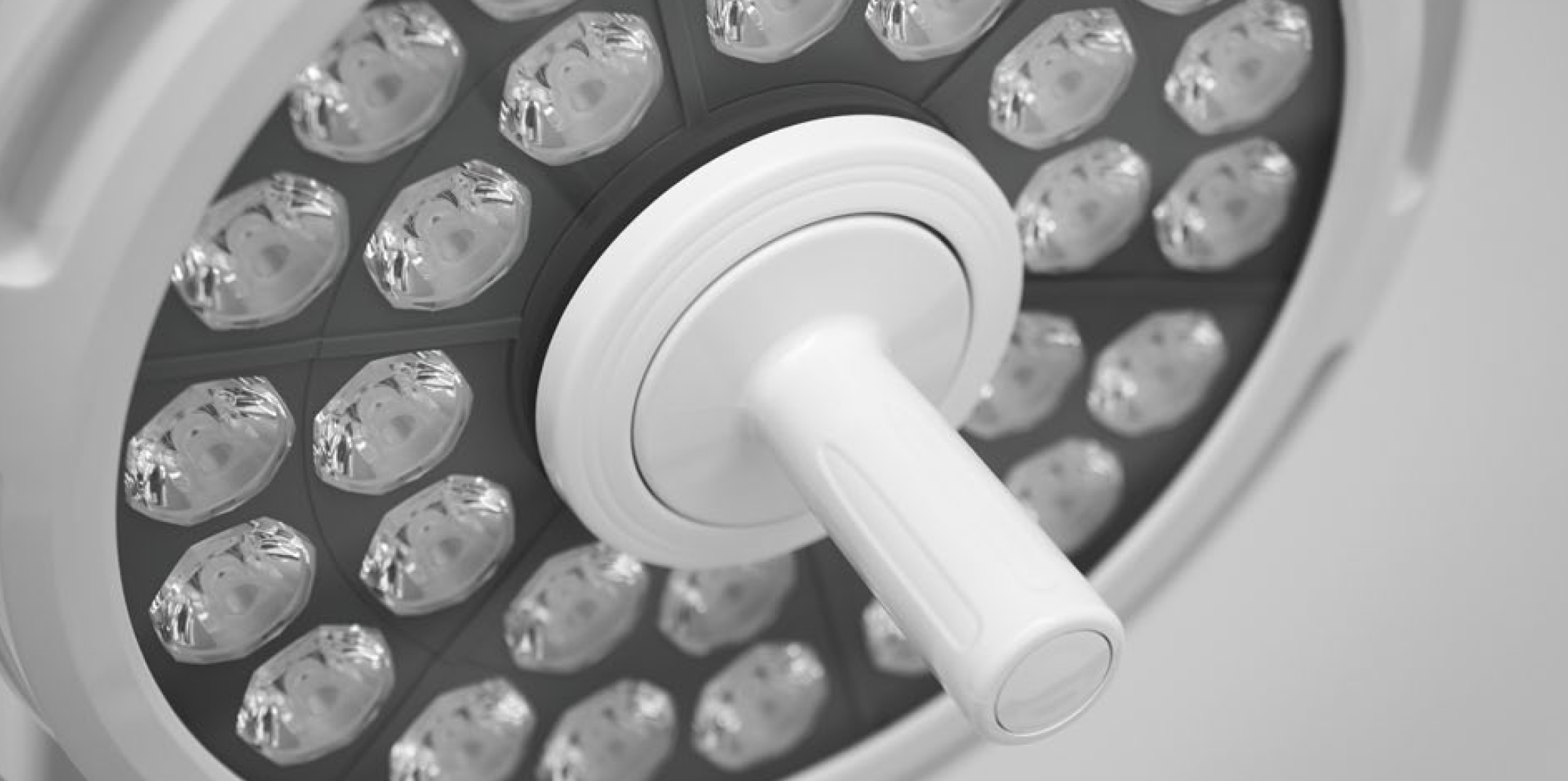

Operating handle

• Central detachable disinfection handle.

• Made of PPSU material.

• Temperature resistance up to 134℃.

• Pressure resistance up to 205.8 kPa.

• Suitable for high-temperature, high-pressure steam sterilization.

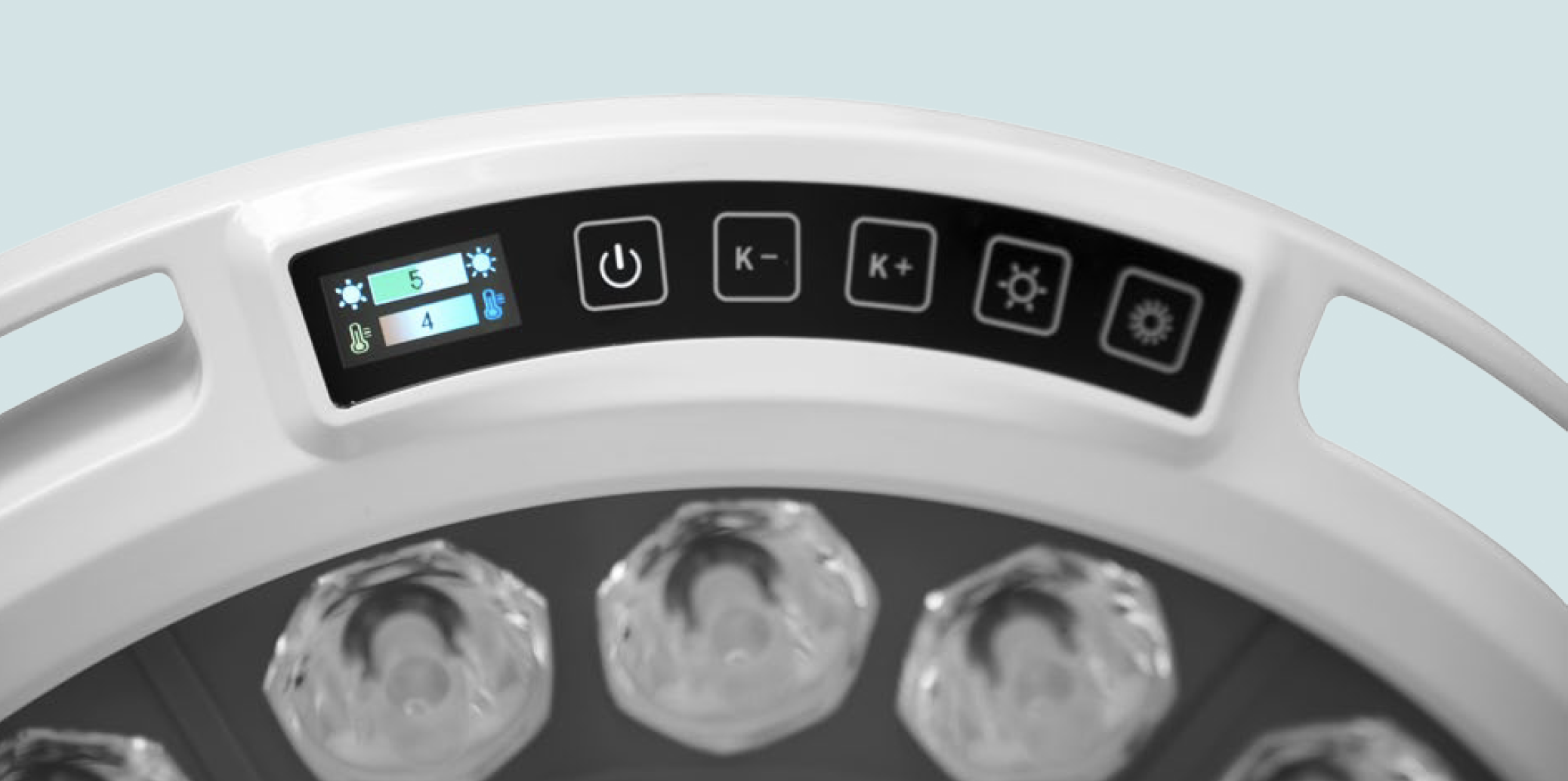

Control penal

Touch control avoids button operation for lamp head movement, with a clear full-color HD LCD display for easy monitoring.
